Electric Tricycle jinma1001 L2e EEC COC

Exploring the Rooder Jinma1001: The Cutting-Edge Electric Tricycle

The Rooder Jinma1001 stands out in the electric tricycle market with its impressive specifications and features. One of the primary highlights is its dimensions, measuring 2160 mm in length, 1150 mm in width, and 1680 mm in height. These dimensions make it a compact yet spacious vehicle, ideal for urban commuting and short-distance travel.

With a wheelbase of 1555 mm, the Jinma1001 ensures stability and smooth handling. Its maximum speed reaches up to 45 km/h, making it a suitable option for daily commutes. Additionally, the electric tricycle boasts a remarkable maximum range of 120 km on a single charge, providing convenience and reliability for longer trips.

The capacity to accommodate three persons makes the Jinma1001 versatile for small families or groups of friends. The tricycle’s curb weight stands at 310 kg, which, combined with a minimum ground clearance of 160 mm, ensures a balanced and safe ride across various terrains.

The steering mode is facilitated through a middle handlebar, offering intuitive and straightforward control. This feature is particularly beneficial for riders who are new to electric tricycles or those transitioning from traditional bicycles or motorcycles.

Powering the Rooder Jinma1001 is a robust 60v 3000w electric motor, providing ample power for efficient and responsive performance. The motor is complemented by a high-capacity 105ah lifepo4 battery equipped with a Battery Management System (BMS), ensuring optimal battery health and longevity.

Overall, the Rooder Jinma1001 electric tricycle presents a well-rounded package of advanced specifications and user-friendly features, making it a competitive choice in the growing market of electric vehicles.

The Rooder Jinma1001 electric tricycle stands out for its numerous benefits and diverse applications, making it a versatile choice for various transportation needs. One of the significant advantages of the Jinma1001 is its impressive performance, characterized by a high maximum speed and substantial range. These attributes make it particularly well-suited for urban commuting and short-distance travel, providing a convenient and efficient alternative to traditional vehicles.

One of the most compelling reasons to opt for the Rooder Jinma1001 is its environmental impact. Powered by a lithium battery, this electric tricycle substantially reduces emissions compared to gasoline-powered counterparts. The use of a 105ah lifepo4 battery with a Battery Management System (BMS) ensures not only enhanced efficiency but also longer battery life, contributing to lower operational costs over time. These eco-friendly features align with growing environmental concerns and the global push towards sustainable transportation solutions.

The Rooder Jinma1001 is also designed with capacity and comfort in mind, making it an ideal option for family use or small group travel. Its robust build and spacious design can comfortably accommodate multiple passengers, offering a practical solution for those who need reliable and roomy transport options.

Moreover, the inclusion of advanced features such as the 60v 3000w motor highlights the tricycle’s efficiency and reliability. This powerful motor ensures smooth and consistent performance, even on more challenging terrains, thus broadening the range of possible applications. Whether for daily commutes, leisurely rides, or even small-scale logistics, the Jinma1001 proves to be a dependable and versatile choice.

In essence, the Rooder Jinma1001 electric tricycle represents a significant step forward in urban mobility solutions. Its blend of high performance, environmental benefits, and practical design elements make it a standout option for those seeking a reliable, eco-friendly, and versatile mode of transportation.

Specification:

Item: Rooder Jinma1001
L*W*H (mm) : 2160*1150*1680
Wheel Base (mm): 1555
Max. Speed (km/h): ≥45
Max. Range (km): 120
Capacity (person): 3
Curb Weigh (kg): 310
Min.Ground Clearance (mm): 160
Steering Mode: Middle Handlebar
A/C Motor: 60V 3000W
Lithium Battery: 105Ah LiFePo4 Battery with BMS& Fast Charging System
Charging Time: 2-3 hrs (220V)
Charger: Intellengent Charger
Type: Hydraulic System
Front: Disc
Rear: Disc
Brake way: Handlebar brake
Front: Independent Double Wishbone
Rear: Integrated Rear Axle
Tyre: Front 120/70-R12 Rear135/70-R12
Wheel Hub: Aluminum Alloy Hub
Mutil-media: MP5+Reverse Camera,Plus Bluetooth,USB connector
Electric Heater: 60V 800W
Central Lock: Auto Level
One Button Start: Auto Level
Electric Door&Window: 2&2
LED light system: Head&rear light,Turn light,Brake light,Reverse light
Dshboard,LCD display: Voltmeter,power meter,kilometer
High and low speed switch: 1
Wiper: Electric
Safety Belt: Front and rear safety belts
Sunvisor,Interior mirror: 2
Mat: Carpet on whole vehicle

Jinma1001 Positioning:

Short distance driving for shopping, daily commute, as family’s second or third vehicle.

3 wheels, 2 seats

Capacity（person）： 2-3

Size: 2160x1150x1680mm

Curb weight:310kg

Loading capacity :150kg

Max. speed:45km/h

105Ah lithium battery Max. range 130km, with a fast charger system that can be fully charged in 3 hours.

Color: White&Silver / Red&Silver / Blue&Silver / Grey&Black and so on.

Details of the vehicle：

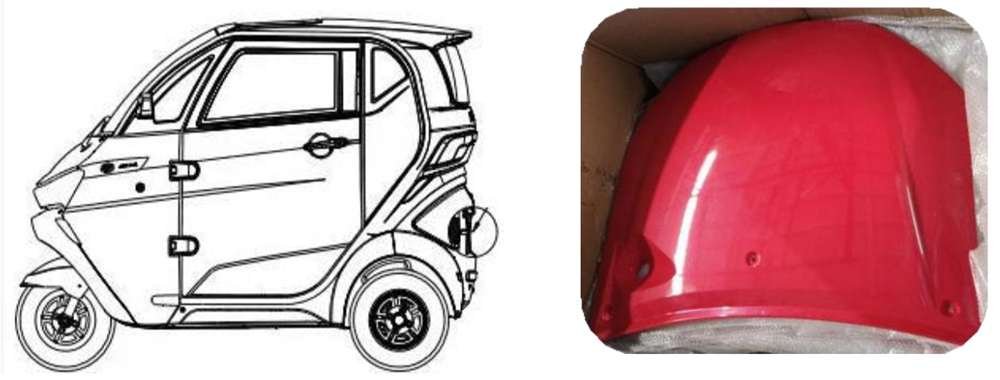

1. ABS Resin Plastic Cover and painting

Whole cover with ABS Resin plastic , have excellent comprehensive physical, impact resistance ,Stability, two-thirds lighter weight than iron.

Automobile-grade,Robot-painting .

2. LED Light System

The integrate LED head &rear-light

Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance.

3. Front Windshield

CCC certified tempered and laminated glass Improve visual and more safety.

4. Dashboard

LCD display, volt meter, power meter, kilometer and reverse camera,plus Bluetooth, MP5,USB connector.

5. Central lock and One button start

6. Electric Windows
7. Mat on the whole car
8. Optional Air Conditioner
9. Seat with belt

Genuine Leather with PU,optional rotating seat for easy getting on and off.

10. AC Motor (3000W)

AC motor with auto-hold function, powerful and water proof, lower noise, no carbon brush, maintenance-free. Equipped with hill-start assist control.

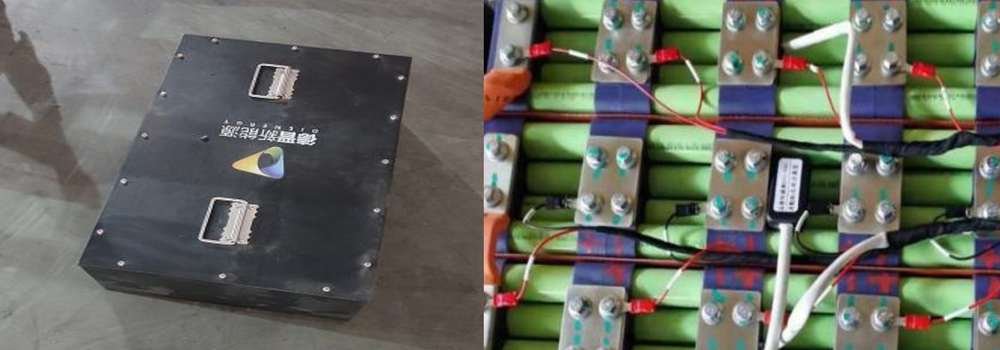

11. Lithium Iron Phosphate Battery

With BMS system, more than 2,500 times charging cycles(8-10 years) under working environment from -30 to 50 °C. Equipped with fast home charging system .

Can be remote online monitoring. Automatic power off after full charge.

12. Electronic Control System

Use Enpower electric control system , reliable and water-proof

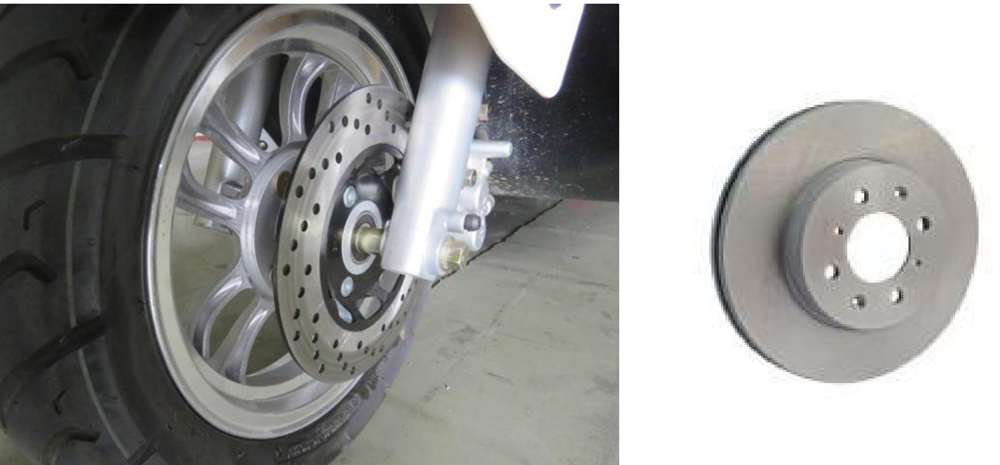

13. Brake System

Front-disc and Rear-drum dual circuit hydraulic brake.

14.Suspension System

The front axle and suspension are independent suspensions, simple structure and excellent stability. The integrated rear axle,axle housing welded by seamless steel tube, lower noise,more durable and reliable.

15.Frame&Chassis

GB Standard Steel, under pickling，Photostatting and corrosion-resistant treatment

Advantage

Save Cost

CKD (Completely Knocked Down) assembly reduce and save customs duty & transportation cost

Save energy

Electric power consumption cost of 100 Km is less than 0.5$.

Car sharing system

Customers can download the APP, scan the QR code on the vehicle, Users can pay the cost directly online .The company can manage all vehicles through the phones.
