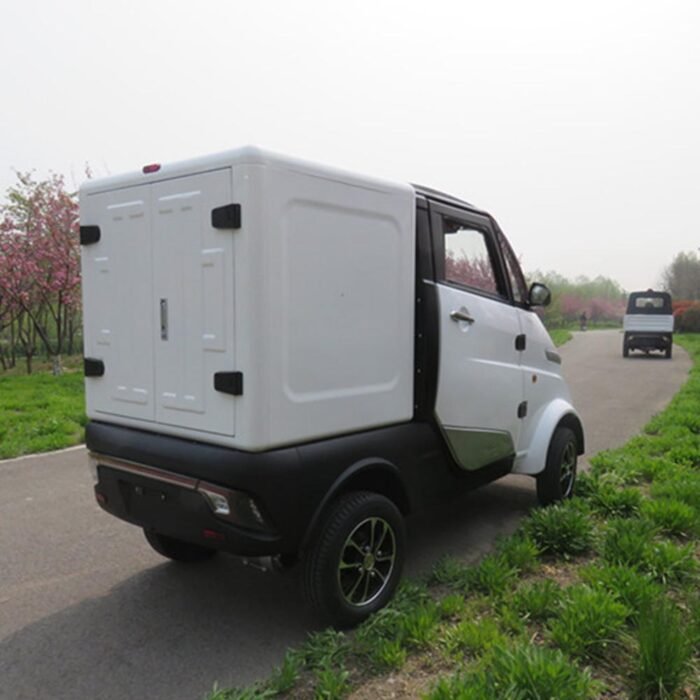

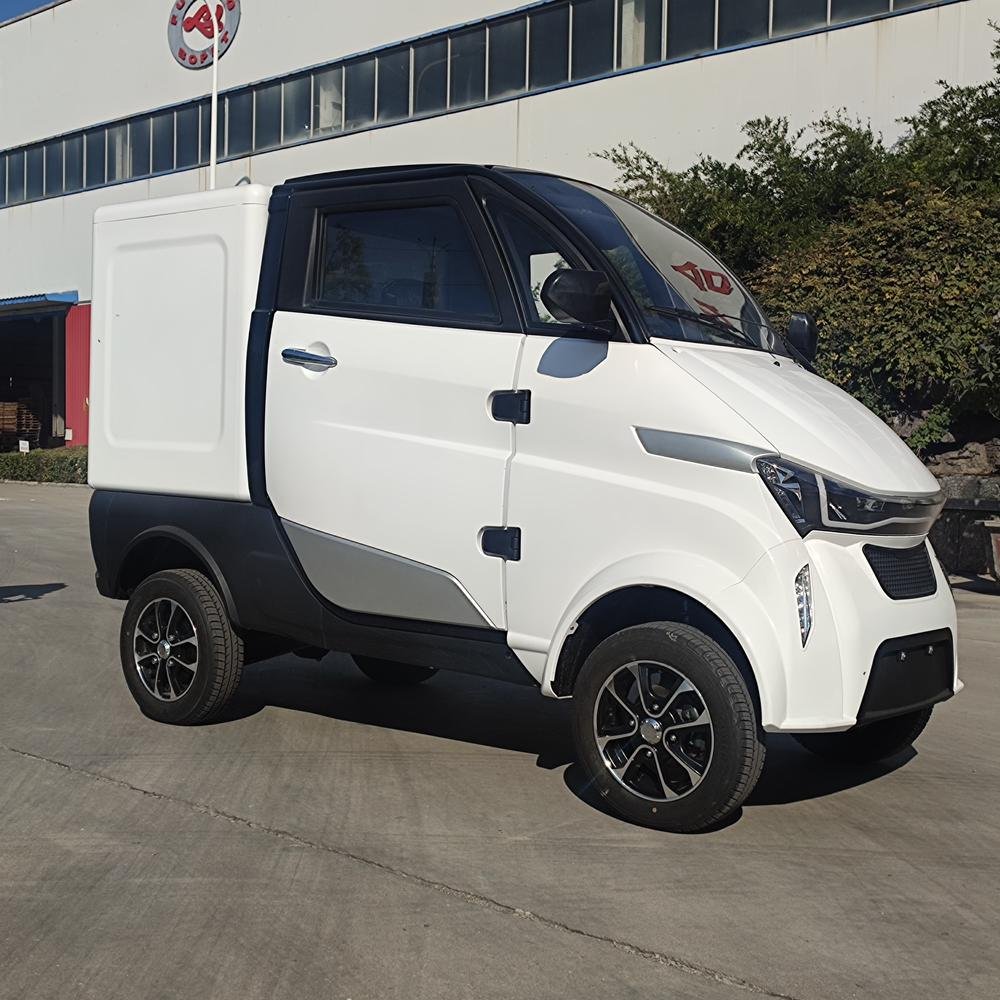

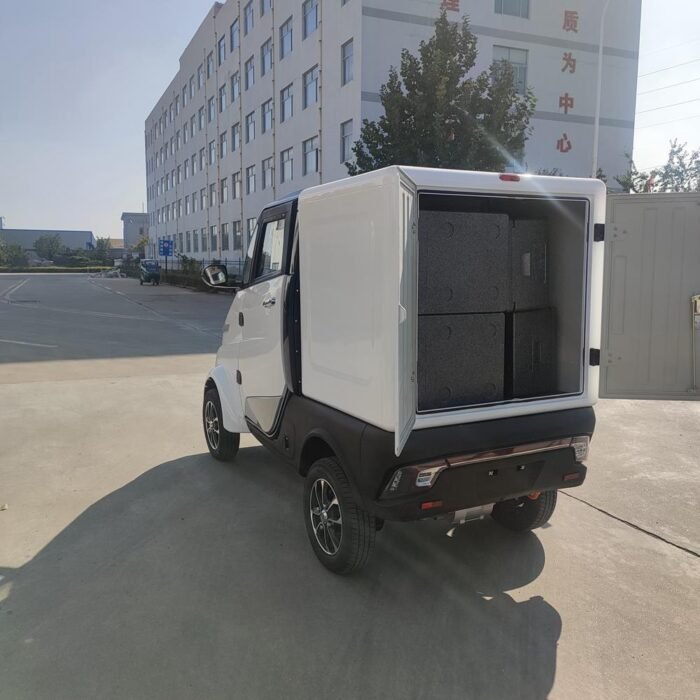

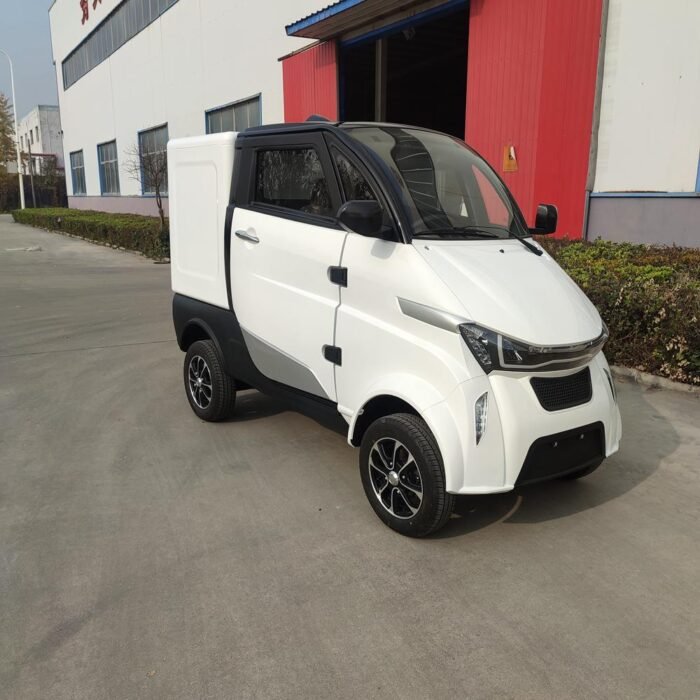

electric suv jinma2002 with Cargo Box EEC L6e-BP

Exploring the Electric SUV Jinma2002: The Ultimate Cargo Solution

The Rooder Jinma2002 Electric SUV stands as a testament to modern engineering, aimed at revolutionizing cargo transportation in both urban and rural settings. This versatile vehicle is designed with a keen focus on efficiency and sustainability, setting it apart as a reliable and eco-friendly choice for various transport needs.

Measuring 2890 mm in length, 1180 mm in width, and 1780 mm in height, the Jinma2002 offers a compact yet spacious design suitable for diverse environments. Its wheelbase of 1840 mm ensures stability and smooth handling, while the minimum ground clearance of 160 mm allows it to navigate different terrains with ease. The SUV’s curb weight stands at 470 kg, making it lightweight yet robust enough to handle substantial cargo loads efficiently.

Performance-wise, the Jinma2002 Electric SUV boasts a maximum speed of 45 km/h, catering to both inner-city commutes and short rural trips. With a maximum range of 100 km on a single charge, it provides ample distance coverage, ensuring that transportation tasks can be completed without frequent recharging. The vehicle is designed to accommodate one person comfortably, featuring a unique middle steering wheel design that enhances maneuverability and driver control.

At the heart of this electric SUV lies a powerful 60v 3000w A/C motor, delivering reliable performance and energy efficiency. Complementing the motor is an advanced 105ah LiFePO4 battery equipped with a Battery Management System (BMS). This state-of-the-art battery not only ensures optimal power usage but also enhances the vehicle’s overall lifespan and safety. Such features underscore the Jinma2002’s commitment to sustainability and operational excellence.

In summary, the Jinma2002 Electric SUV encapsulates a blend of innovation and practicality, making it a top contender in the realm of cargo transportation. Its advanced specifications and eco-friendly design make it a pivotal solution for those seeking a dependable electric SUV for various transport needs.

One of the standout features of the Jinma2002 Electric SUV is its versatile cargo box, meticulously crafted from advanced basalt fiber materials. This cargo box, with its dimensions of 880*1160*995 mm, is specifically designed to accommodate a diverse array of cargo types, thereby enhancing the vehicle’s functionality across various applications. The rated load capacity of 330 kg underscores its robust design, making it an ideal choice for tasks demanding reliable payload management.

The use of basalt fiber materials in the construction of the cargo box is a significant innovation. Basalt fiber is renowned for its exceptional strength-to-weight ratio, offering substantial durability while remaining lightweight. This combination ensures that the Electric SUV maintains optimal performance and efficiency, even when fully loaded. Additionally, basalt fiber is environmentally friendly, as it is derived from natural volcanic rock, making it a sustainable alternative to traditional materials.

Integration of the cargo box within the Jinma2002’s overall design is seamless, ensuring that utility is maximized without compromising the vehicle’s sleek aesthetic or performance capabilities. The cargo box’s structural integrity and lightweight properties contribute to the SUV’s overall stability and energy efficiency, essential factors in the realm of electric vehicles.

Real-world applications of the Jinma2002 Electric SUV demonstrate its versatility and practicality across various industries. For delivery services, the cargo box provides ample space and secure transport for packages, ensuring timely and efficient deliveries. In agriculture, it offers a reliable solution for transporting produce, tools, and other supplies necessary for daily operations. Small-scale logistics operations also benefit from the cargo box’s capacity and durability, facilitating the transport of goods with minimal environmental impact.

Through its innovative design and practical applications, the Jinma2002 Electric SUV’s versatile cargo box exemplifies the vehicle’s commitment to blending advanced technology with everyday functionality, making it a compelling choice for a wide range of professional uses.

Specifications:

Item: Rooder jinma2002
L*W*H （mm): 2890*1180*1780
Wheel Base(mm): 1840
Min.Ground Clearance (mm): 160
Curb Weight（kg）: 470
Max. Speed(km/h): 45
Max. Range (km): 100
Capacity (person): 1
Cargo Box – Basalt fiber materials: 880*1160*995mm
Rated Load(kg): 330
Steering Mode: Middle Steering Wheel
A/C Motor: 60V 3000W
Lithium Battery: 105Ah LiFePo4 Battery with BMS& Fast charging system
Charging Time: 2-3 hrs (220V)
Charger: Intellengent Charger
Type: Hydraulic System
Front: Disc
Rear: Drum
Front: Independent Double Wishbone
Rear: Integrated Rear Axle
Tyre: Front 135/70-R12 Rear145/70-R12
Wheel Hub: Aluminum Alloy Hub
Mutil-media: MP5+Reverse Camera,Plus Bluetooth,USB connector
Electric Heater: 60V 800W
Central Lock: Auto Level
One Button Start: Auto Level
Electric Door&Window: 2&2
LED light system: Head&rear light,Turn light,Brake light,Reverse light
LCD display: Voltmeter,power meter,kilometer
Seats: Genuine Leather
Safety Belt: Front and rear safety belts
Sunvisor,Interior mirror: 2
Wiper: Electric
Mat: Carpet on whole vehicle

Jinma2002 EEC approved (L6e) Positioning:

The delivery solution for the last mile of the city. Cold chain, takeaway, express delivery, logistics and supermarket distribution, etc., it is the short-distance cargo transportation vehicle within the city.

4 wheels, 1 seat

Size: 2890*1180*1780mm

The size of cargo box: 880*1180*995mm

The size of hopper: 880*1180*400mm

Curb weight:500kg

Loading capacity: 330kg

Max. speed:45km/h

105Ah lithium battery Max distance 100km ,with fast charge system, full charge in 3 hours;

Options 206Ah lithium battery Max distance can reach 190km, with fast charge system, full charge in 6 hours.

Color: White&Silver, Red&Silver, Blue&Silver, Grey&Black.

Details of the vehicle：

1. ABS Resin Plastic Cover and painting

Whole cover with ABS Resin plastic , have excellent comprehensive physical, impact resistance ,Stability, two-thirds lighter weight than iron.

Automobile-grade,Robot-painting .

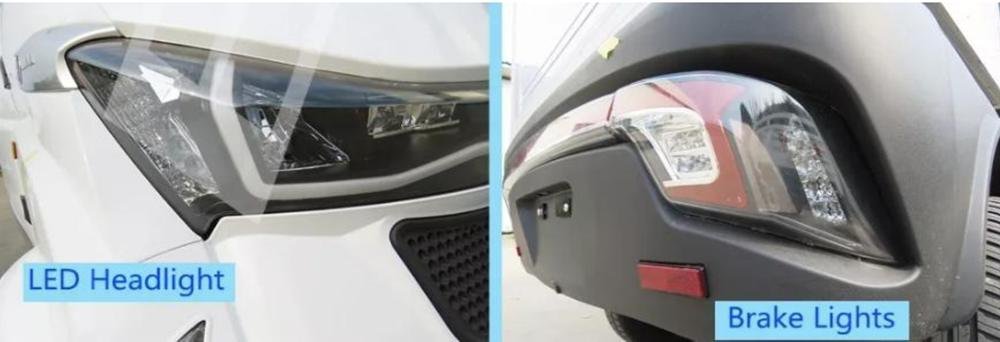

2. LED Light System

The integrate LED head &rear-light

Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance.

3. Front Windshield

CCC certified tempered and laminated glass Improve visual and more safety.

4. Dashboard

LCD display, volt meter, power meter, kilometer and reverse camera,plus Bluetooth, MP5,USB connector.

5. Central lock and One button start

6. Electric Windows

7. Mat

8. Optional Air Conditioner

9. Seat with belt

Genuine Leather with PU,optional rotating seat for easy getting on and off.

10. AC Motor

AC motor with powerful and water proof, lower noise, no carbon brush, maintenance-free. Equipped with fast home charging system.

11. Lithium Iron Phosphate Battery

with BMS system, more than 2,500 times charging cycles(8-10 years) under working environment from -30°C to 50 °C. Equipped with hill-start assist control.

Can be remote online monitoring. Automatic power off after full charge.

12. Electronic Control System

Use En-power electric control system , reliable and water-proof

13. Brake System

Front-disc Rear-drum,two-circuit hydraulic brake.

14. Suspension System

The front axle and suspension are independent suspensions, simple structure and excellent stability. The integrated rear axle,axle housing welded by seamless steel tube, lower noise,more durable and reliable.

15. Frame&Chassis

GB Standard Steel, under pickling，Photostatting and corrosion-resistant treatment

All kinds of Cargo Box for choose:

1, Cargo Box –BF: basalt fiber

Size:875*1080*995mm

It is a new type of inorganic environmental protection with high-performance , can be directly degraded in the environment after being discarded. With excellent properties such as electrical insulation, corrosion resistance and high temperature resistance.

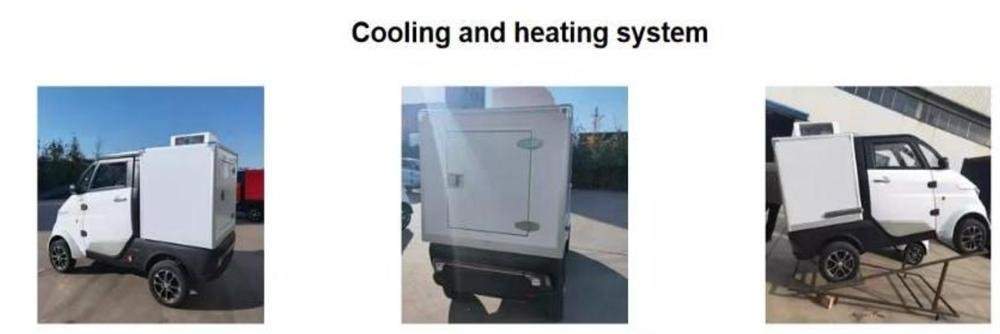

2,Optional Cargo Box-Equip with cooling system and heating system.

Size:875*1080*995mm

Cooling system design for fruit,vegetable, seafood, drinks, medicine transportation, Adjustable refrigeration temperature from -18℃~10℃

Heating system design for takeaway , adjustable heating temperature from 40℃ to 60 ℃. Cargo box can be divided to two space, one for cooling and one for heating.

3, Aluminium alloy hopper

Size:875*1080*370mm

After heat treatment and alloying strengthening.

Advantage:

Save Cost

CKD (Completely Knocked Down) assembly reduce and save customs duty & transportation cost

Save time

Fast charger within 4-5 hours under home charger

Car sharing system

Customers can download the APP, scan the QR code on the vehicle, Users can pay the cost directly online .The company can manage all vehicles through the phones. contract our whatsapp: +8613632905138
